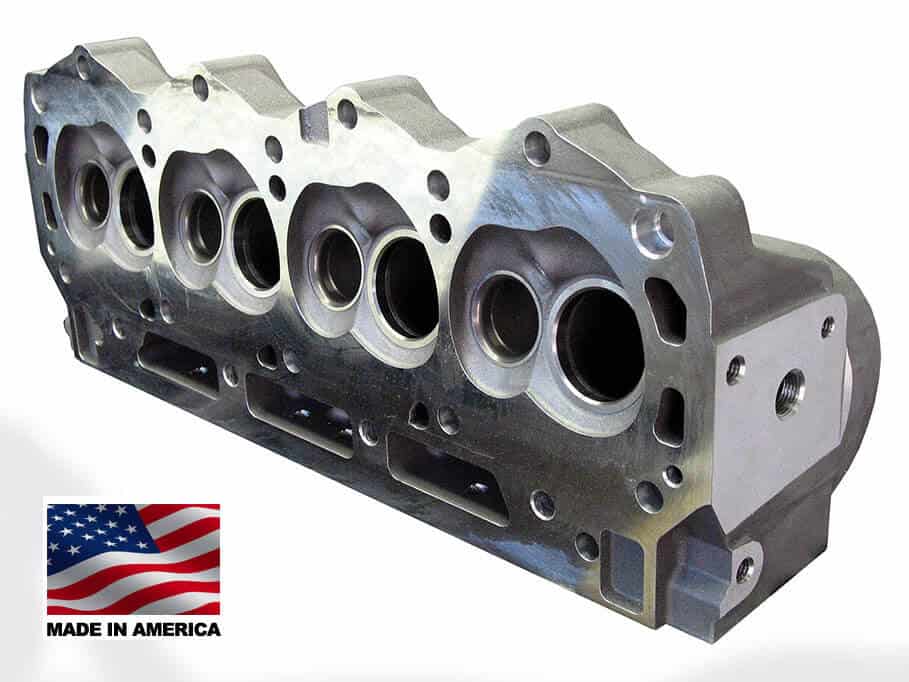

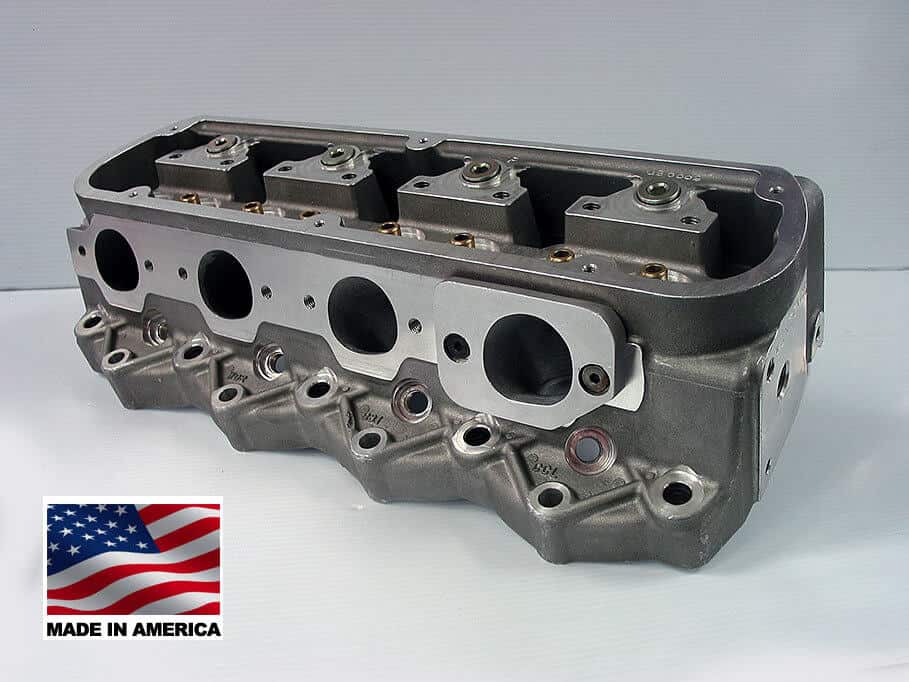

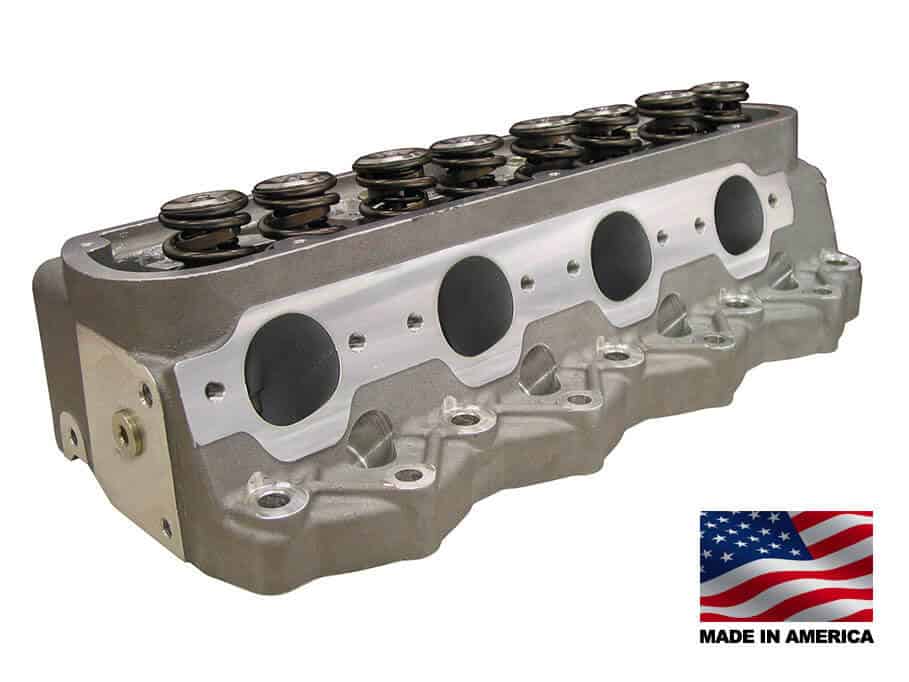

Bill Mitchell Products BMP 023012 - Cylinder Head Aluminum Ford Small Block 275cc 64cc 10Degree 2.250" x 1.625"(DISCONTINUED)

BILL MITCHELL PRODUCTS BMP Cylinder Head Aluminum Ford Small Block 275cc, 10Degree 2.250" x 1.625"

The BMP engineering team has developed what is the ultimate competition cylinder head for 302/351 Ford small block applications. It features a highly advantageous 10° valve angle (with parallel rocker arm mounting) and some humongous ports. The “as-cast” intake runners are available in 275 and 285cc with huge 102cc exhaust ports. Add the CNC porting option and a 310cc intake runner is yours. Designed for use with all power-adders, the 10° BMP SBC comes with provisions to use two extra head bolts per cylinder as is offered with the companion

BMP SBF Aluminum block or WORLD Iron Block.   INTAKE MANIFOLD:

• Head utilize standard Windsor Bolt Pattern. Some modifications may be required when using standard Windsor intakes.
• Custom Sheet Metal or Edlebrock #2868. Some modifications are reqired to the intake face of the cylinder head to accept the Edlebrock bolt pattern.
• You must make sure that the intake water cross over ports line up with the holes on the head.
• For crossover water passage, you may have to drill two holes into the head to allow water flow between the intake and head.
• Use a gasket as a template locate your drill points.

    TECHNICAL SPECS

• Casting ID Number: I-081A 285cc or I-081B 275cc
• Material: 355-T6 alloy high density aluminum
• Valve Seats: Intake (hardened), exhaust (hardened)
• Valves: 2.250 Intake, 1.625 Exhaust, 5/16"
• Valve Guides: Manganese bronze
• Spring Seats: Machined for 1.560"
• Valves: Manley stainless steel valves in assemblies
• Rocker Arms: Shaft mount system required, JESEL part#KPS371149
• Exhaust Ports: 102cc

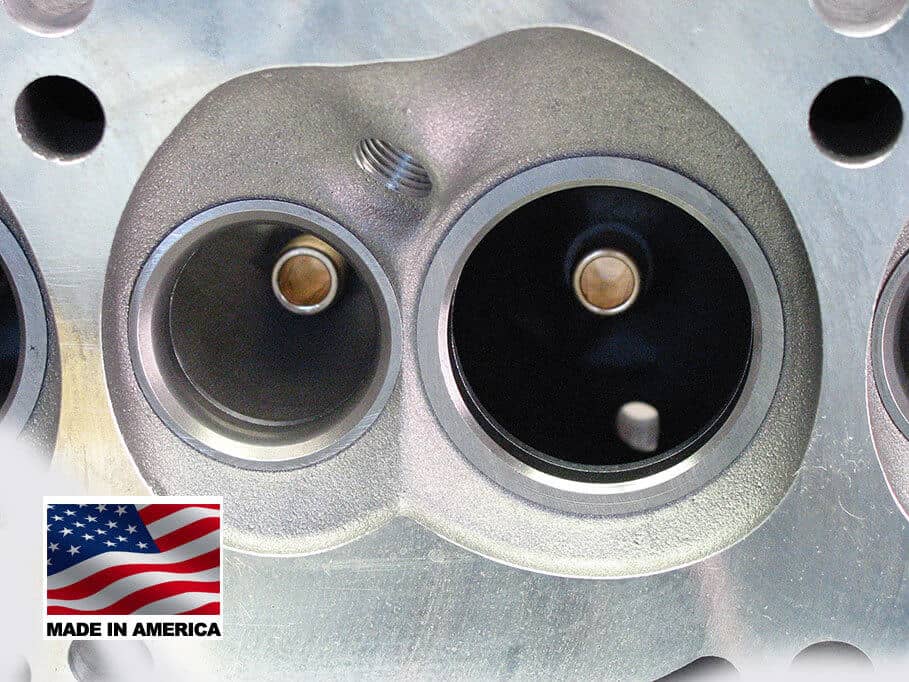

• Combustion Chamber: 64cc Spark Plug: 14mm .750" reach gasket style
• Valve Job: Bare As Cast Head do not have a valve job
• Valve Cover Rail: Raised
• Valve Angle: 10°
• Head Gasket: Cometic C5132, C5133, C5134, C5135
• Exhaust Gasket: Cometic EX1367043C
• Accessory Bolt Holes: Stock

  BMP 275cc 10 Degree Race Aluminum Head Flow Data

Valve Lift--.300 --.400 --.500 --.600 --.700 --.800 2.250 ------- 220 -- 283 -- 327 -- 352 -- 365 -- 347 1.625 ------- 166 -- 204 -- 222 -- 237 -- 243 -- 246

 Methods used: Superflow 600, Flowed at 28" with a bowl blend 1" down, 1" radiused entry plate on the intake port, No exhaust tube, Using Manley Severe Duty valves.

 Heads are sold individually.
