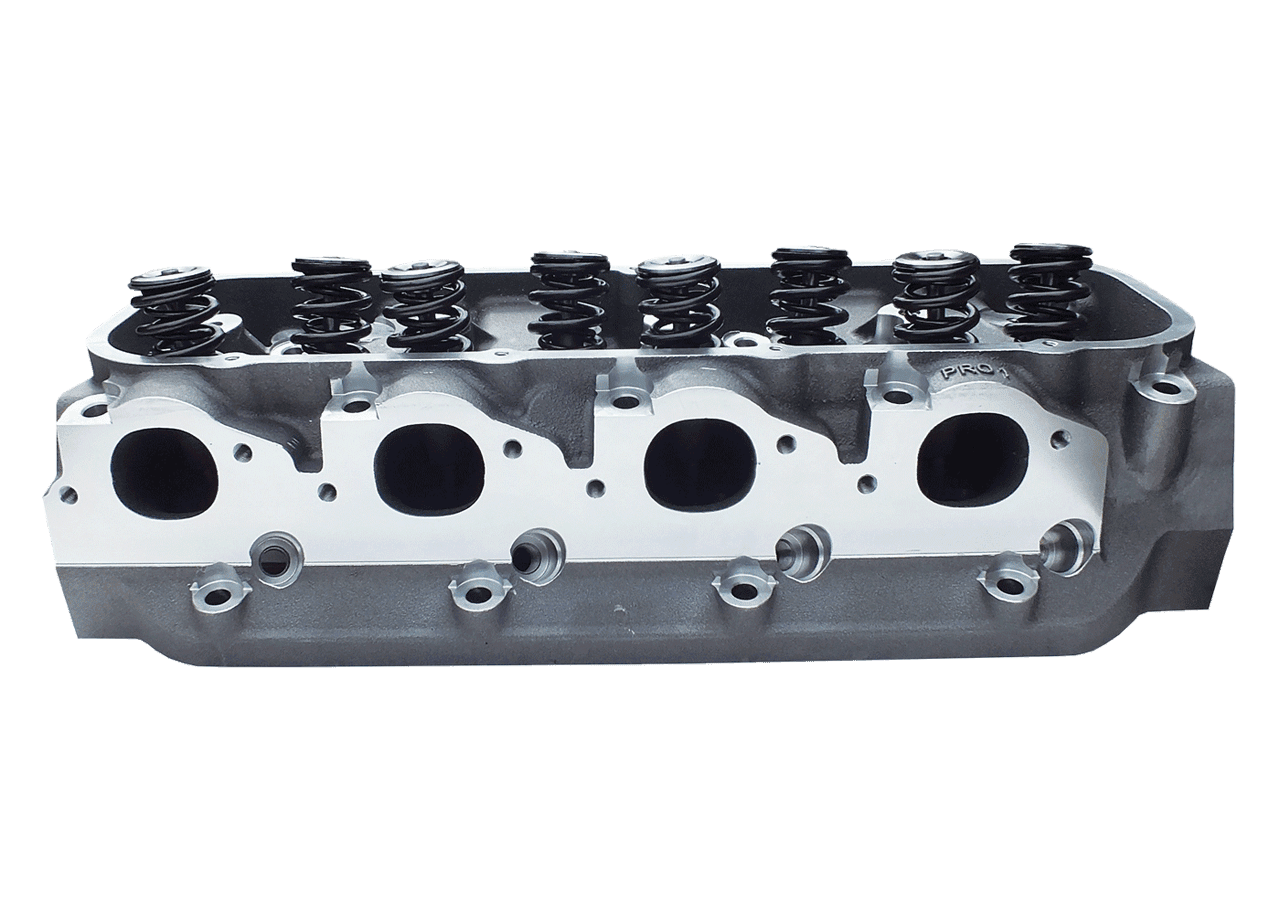

Dart 19200010M Cylinder Head Aluminum Big Block Chevy Pro1 325cc 2.250" x 1.880" Marine, Bare Casting

Dart 19200010M Cylinder Head Aluminum Big Block Chevy Pro1 325cc 2.250" x 1.880" Marine,  Bare Casting

Material: RMR Cast Aluminum Alloy

Valve Angle: 24°

Intake Port Volume: 325cc

Intake Valve: 2.250”/2.300”

Exhaust Valve: 1.880”

Chamber Volume: 121cc

Intake Port Shape: Rectangle

Exhaust Port Location: .300” raised

Serious street performance, mild bracket racing, and marine. Over 7,000 RPM, 525+ cubic inches. Can be used on smaller engines with a tight converter.

The PRO1 24° 325cc delivers increased airflow at high valve lift for high RPM, big cubic inch engines, and still remains compatible with off the shelf pistons, valve train components, and intake manifolds.

Long wearing Bronze valve guides, screw-in studs, multi-angle intake seats with hardened, radiused exhaust seats are standard. Best of all, our precision cast ports produce outstanding airflow without time consuming porting.

Assemblies include Stainless Steel valves, premium springs, locks, retainers, guide plates and seals.

Heads are sold individually.
