When you’re looking for a carburetor that’s a step above the rest, then you need to look no further. Our “HO-Series” not only provide exceptional drivability, acceleration, & performance, but also comes standard with great features & upgrades. These start as a fully machined aluminum mainbody with proper booster selection which are fixture installed & centered. Our latest billet metering blocks (available in either red or black) are totally blueprinted on all circuits & our proprietary fuel curve is set. All our “HO-Series” carburetors feature mechanical secondaries, 4-corner idle circuitry, dual accelerator pumps, high-flow needle & seats, aluminum bowls with clear sight glass for easy float setting & checking, reusable gaskets, easily adjustable secondary throttle shafts, progressive throttle linkage, high flow power valves, brass floats, idle/transition bleeds are externally adjustable for easy low speed fine tuning, & so much more. After complete hand assembly every carburetor is test run with our baseline tune-up & goes through multiple Quality Control checks before shipping.

Specific to our 650HO is the use of a conventional aluminum mainbody. This carburetor actually flows right at 650 cfm & offers increased booster signal by encapsulating the high-flow drop leg boosters. The increased booster signal results in additional response providing more low end acceleration & a broader power band across the board. All the body surfaces & choke housing are machined & fully deburred. All circuits fully blueprinted , sized, & proper fuel curve set. The 650HO includes all the great features listed above for “HO-Series” carburetors & is available for immediate shipping.

The 650 HO series carb is hand built to our "wet flow" specifications, test run and blueprinted for maximum performance right out of the box. This carburetor is at home on the street or strip. Applications include: Street Rod, Pro Street, & Bracket racing.

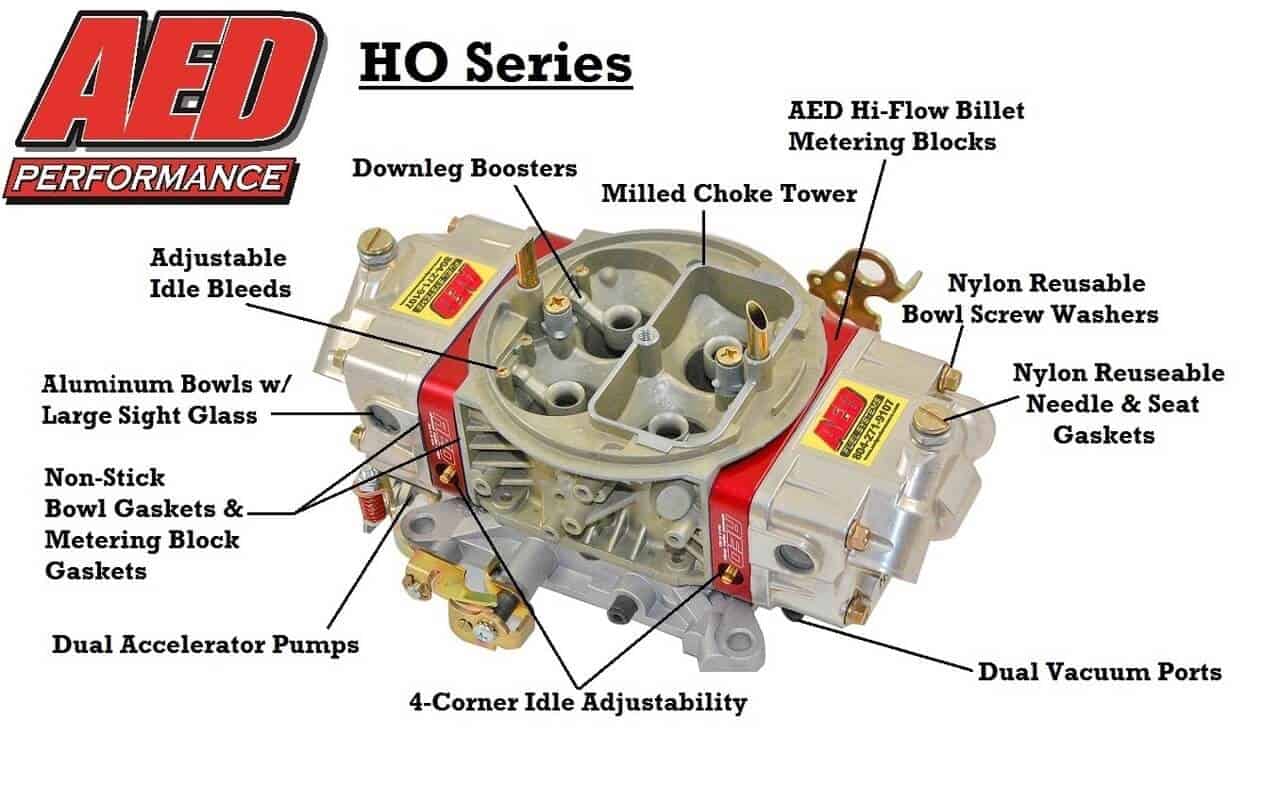

Features:

• New Aluminum Main Body
• Milled Choke Horn
• Down Leg Boosters
• Hi Flow Billet Metering Blocks
• Nylon Reusable Bowl Screw Gaskets
• Nylon Reusable Needle & Seat Gasket
• Dual Vacuum Ports
• 4 Corner Idle Adjustment
• Dual Accelerator Pumps
• Non Stick Bowl Gaskets & Metering Block Gaskets
• Aluminum Fuel Bowls with Large Sight Glass
