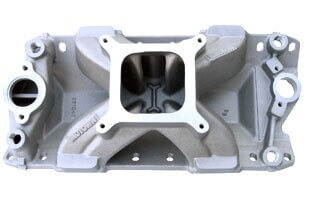

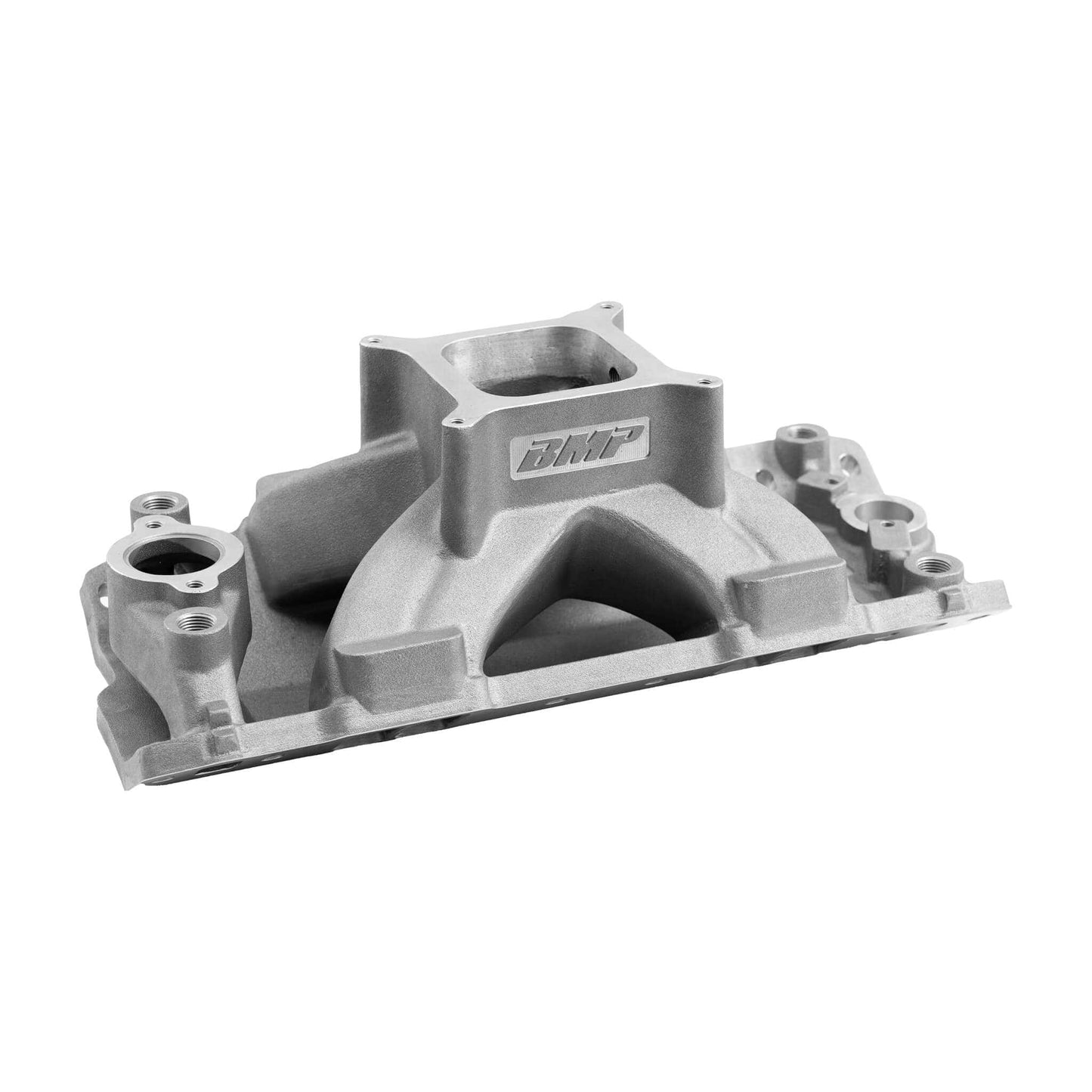

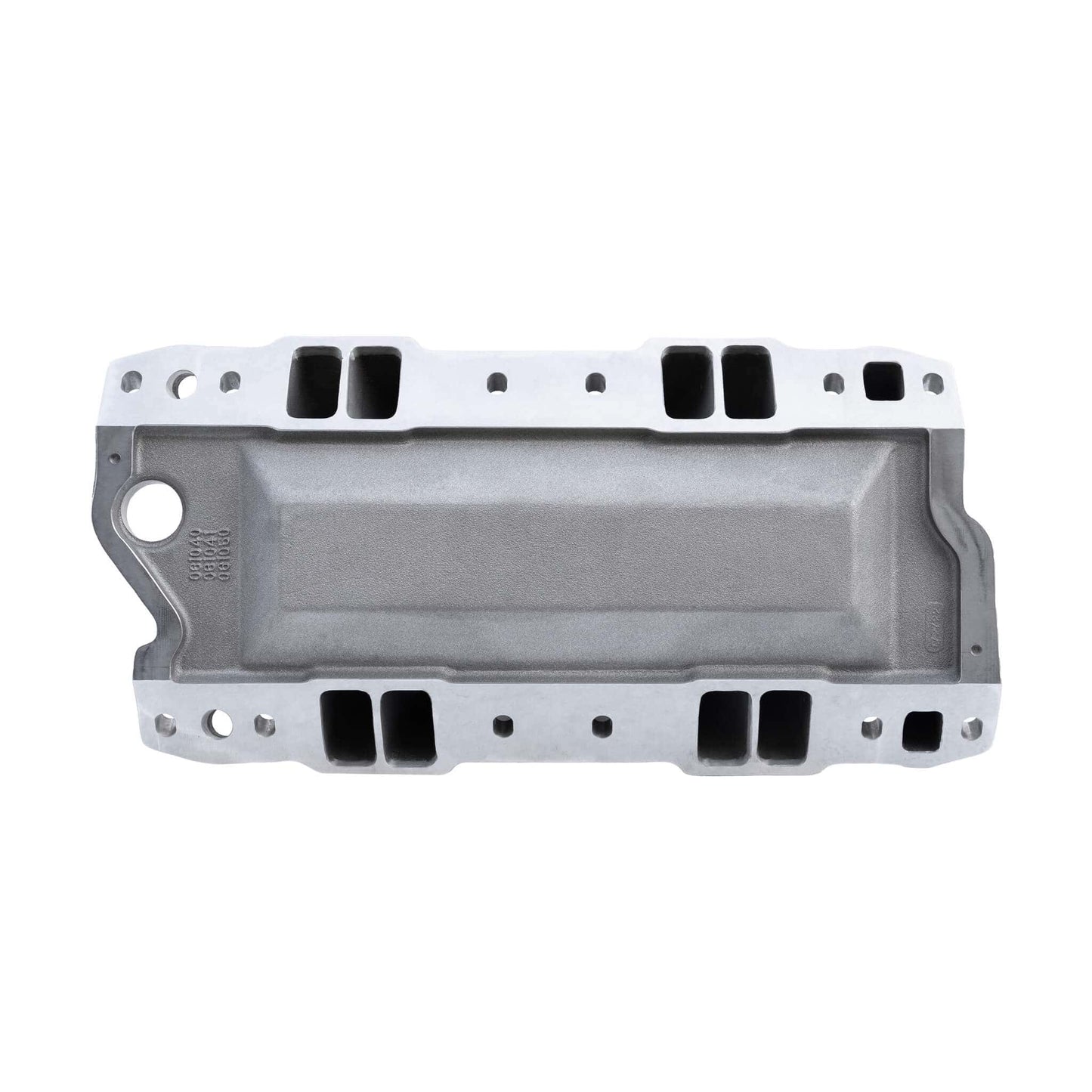

Bill Mitchell Products BMP 061041 - Intake Manifold Chevy Small Block 4150 Carb Flange for Bowtie/Vortec Series Heads

Bill Mitchell Products Intake Manifold Chevy Small Block 4150 Carb Flange for Bowtie/Vortec series heads

This intake was designed for specific circle track classes that require the use of a bowie/Vortec cylinder heads. Unlike a standard Vortex style intake bolt angles that are vertical a bowtie/vortec cylinder head has the old style angles. In addition the intake ports are just slightly different left to right but the height of the ports are much taller and their is an extra 1.000" added to the carb flange.

There are other versions available on the market but none that perform as the Bill Mitchell Products intake does. The only choice of leading class engine builders across the country. Just like our standard intake this was designed with a broad power band in mind. Pulls great from 2500-7500

TECHNICAL INFORMATION:

Port Size: 2.215" x 1.175"

Rectangle Port RPM

Range: 2500-7500 Overall Height: 6.850"
