Cam Bearing Hydraulic Installation Tool Pro3 Set, made by Bonefied Tools BTPK3

Cam Bearing Hydraulic Installation Tool Pro3 Set, made by Bonefied Tools BTPK3

$1,605.00
$1,605.00
Sale Sold out
View full details

Description

Reviews

Additional information

This six ton hand operated, hydraulic unit pulls the cam bearing into position gently and nearly effortlessly.

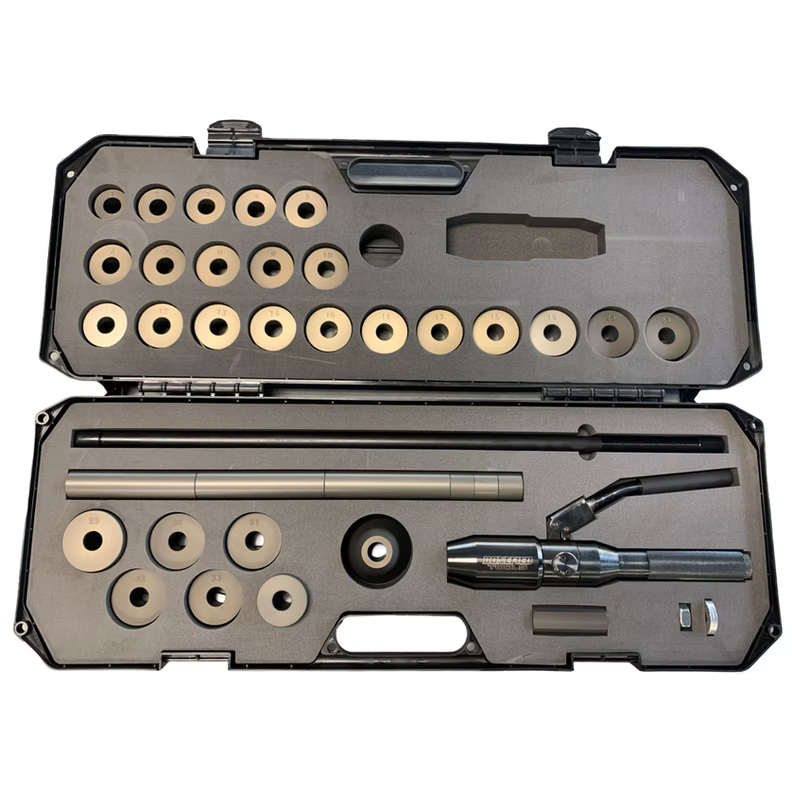

This kit comes standard with:

This is our full kit for most domestic V8 and V6 gas engines applications. That’s Buick, Cadillac, Chevrolet, LS, Ford, Chrysler, GEN III HEMI Oldsmobile and Pontiac Babbitt bearings.

- Heavy duty steel drawbar

- Assorted aluminum spacers

- Aluminum centering cone

- Aluminum Hex nut

- Sturdy carrying case with a custom foam. Components are CNC machined.

All 6061 aluminum parts are hard coat anodized for durability and appearance and all steel components have been black oxide.



A big hammer is no longer necessary to install camshaft bearings. Bonefied Customs in Lowell, Michigan, has developed an installation tool that uses an integrated hand-operated hydraulic pump that gently inserts the bearing into its respective bore
in the cam tunnel.


“It’s very gentle on the bearings,” said Jamie Hamm. “It maintains the bearing integrity. You almost never have to scrape the bearings.”


The tool is designed with centering cones and a steel shaft to support the bearing mandrel. Spacers get the bearing in position one at a time for installation in the cam bore. With just a few pumps on the hand lever, the bearing is slowly moved into place. The tool is then quickly disassembled, and the spacers can be set up to install the next bearing.


“There are no distorted bearings, and they’re all installed with the correct orientation to the oil holes,” added Hamm.
