Manley Rotating Kit 415 High Compression Chevy LS-1 29415R

Manley Rotating Kit 415 High Compression Chevy LS-1 29415R

Regular price $3,217.55
Regular price Sale price $3,217.55
Sale Sold out
View full details

Description

Reviews

Addition information

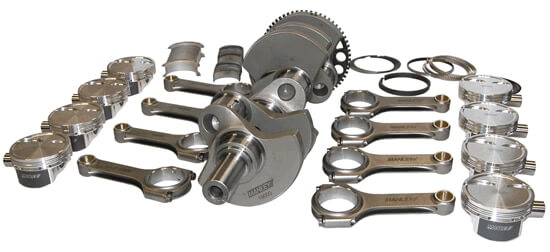

Manley Chevy LS-1 415CID High Compression Rotating Assembly Stroke 4.000" x Rod 6.125"ARP 2000 bolts x Piston 4.070"1.115C.H. -4cc Flat top 12.4:1 w/64cc

Kit is Precision internally balanced by Manley in house

Manley 4340 non-twist lightweight forged steel 4.000" 58 tooth reluctor wheel crankshaft.

**Crank has been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Manley 4340 forged steel H-beam 6.125" connecting rod with optional 7/16" ARP 2000 cap screws (1500hp rating).

**Rods have been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Manley 2618 forged aluminum platinum series pistons 4.070" 1.115"CH -4cc Flat top pistons #592670C

Manley Premium chromoly wrist pins. Total Seal 1.5mm-1.5mm-3mm piston rings. Clevite high performance "H" series rod (narrowed) and main bearings.

Internally Precision Balanced by Manley in house.

Compression Ratios:

64cc chamber = 12.4:1 72cc

chamber = 11.1:1

Don't be fooled by other look alike kits with a cheap price. Our kits come standard with name brand components, ARP 2000 Rod bolts and Clevite H-series rod and main bearings.

Weight 85 lbs
Dimensions 25 × 20 × 20 in
