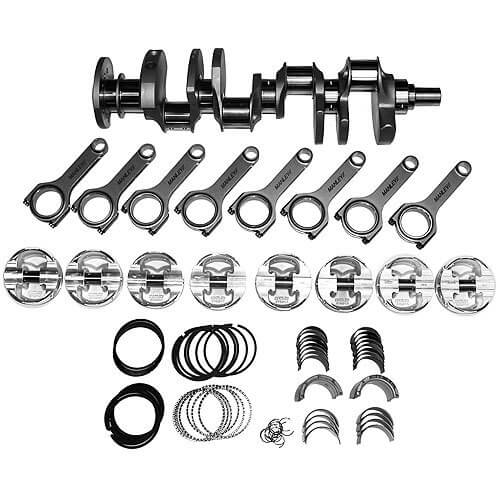

Manley Rotating Kit 434 High Compression Chevy Small Block 290330RH

Manley Chevy Small Block 434CID High Compression Rotating Assembly Stroke 4.000" x Rod 6.000"ARP 2000 bolts x Piston 4.155"1.100C.H. +4cc Dome 13.5:1 w/64cc

Kit is Precision internally balanced by Manley in house

Manley 4340 non-twist lightweight forged steel 4.000" 350 main journal crankshaft.

**Crank has been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Manley 4340 forged steel H-beam 6.000" connecting rod with optional 7/16" ARP 2000 cap screws (1500hp rating).

**Rods have been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Manley 2618 forged aluminum platinum series pistons 4.155" 1.100"CH +4cc Dome pistons #593830

Manley Premium chromoly wrist pins.

Total Seal 1/16"-1/16"-3/16" piston rings.

Clevite high performance "H" series rod (narrowed) and main bearings.

Internally Precision Balanced by Manley in house.

Compression Ratios:

58cc chamber = 14.7:1 64cc

chamber = 13.5:1 76cc

chamber = 11.7:1

Don't be fooled by other look alike kits with a cheap price. Our kits come standard with name brand components, ARP 2000 Rod bolts and Clevite H-series rod and main bearings.
