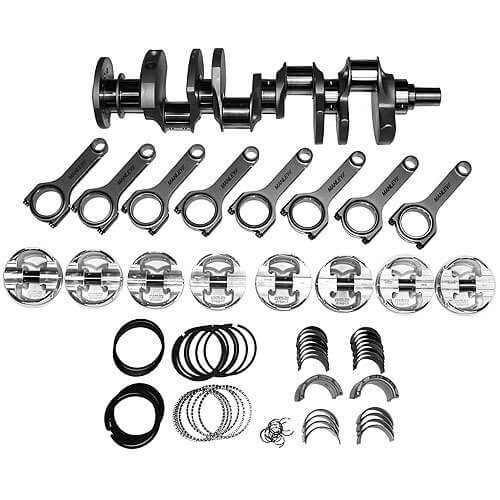

Manley Rotating Kit 434 10.6:1 Compression Chevy Small Block 290230RH (Balanced)

Manley Rotating Kit 434 10.6:1 Compression Chevy Small Block 290230RH (Balanced)

Regular price $3,295.00
Regular price Sale price $3,295.00
Sale Sold out
View full details

Description

Reviews

Additional information

Manley Chevy Small Block 434CID 10.6:1 Compression Rotating Assembly Stroke 4.000" x Rod 6.000"ARP 2000 bolts x Piston 4.155"1.000C.H. -20cc Dish w/64cc

Compression calculated: 9.000" Deck, 4.155" bore, -20cc dish, .010" PTD, 4.165"x.041"(9.0cc)Gasket, 64cc chamber

Manley 4340 non-twist lightweight forged steel 4.000" 350 main journal crankshaft.

Manley 4340 forged steel H-beam 6.000" connecting rod with optional 7/16" ARP 2000 cap screws (1500hp rating).

Manley 2618 forged aluminum platinum series pistons 4.155" 1.100"CH -20cc Dish pistons #593930

Manley Premium chromoly wrist pins.

Total Seal 1/16"-1/16"-3/16" piston rings.

Clevite high performance "H" series rod (narrowed) and main bearings.

Internally Balanced by Manley.

Compression Ratios:

58cc chamber = 11.0:1

64cc chamber = 10.6:1

76cc chamber = 9.3:1
