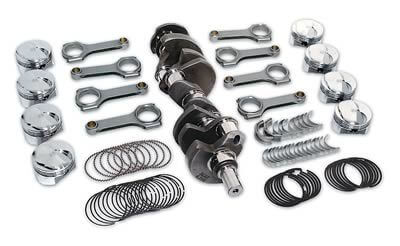

Manley Rotating Kit 598 14.3:1 Compression Chevy Big Block (10.2") 29598RH (Balanced)

Manley Chevy Big Block 598CID 14.3:1 Compression Rotating Assembly fits 10.200"

Stroke 4.500" x Rod 6.700"ARP 2000 bolts x Piston 4.600"1.245C.H. 43cc Dome Pistons 14.7:1 w/118cc

Compression calculated: 10.200" deck, 4.600" bore, 43cc dome, .020" PTD, 4.630"x.039"(10.8cc)Gasket, 119cc chamber

Manley 4340 non-twist lightweight forged steel 4.500" crankshaft. Requires a 10.200" block

Manley 4340 forged steel H-beam 6.700" connecting rod with optional 7/16" ARP 2000 cap screws (1500hp rating).

Manley 2618 forged aluminum platinum series pistons 4.600" 1.245CH 43cc Dome pistons Lateral Gas Ports #697680*

Manley Premium chromoly wrist pins.

Total Seal 1/16"-1/16"-3/16" piston rings.

Clevite high performance rod (narrowed) and main bearings.

Precision Balanced by Manley in house.

Compression Ratios:

112cc chamber = 15.7:1

118cc chamber = 14.3:1

124cc chamber = 13.9:1
