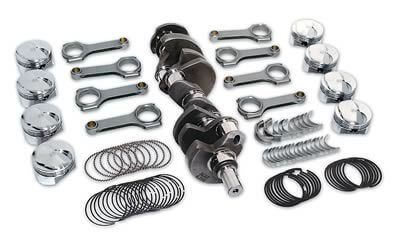

Manley Rotating Kit 632 Low Compression Chevy Big Block (10.2") 28632RH

Manley Chevy Big Block 632CID Low Compression Rotating Assembly fits 10.200"

Stroke 4.750" x Rod 6.700"ARP 2000 bolts x Piston 4.600"1.120"C.H. -3cc Flat Top 10.5:1 w/118cc

Kit is Precision internally balanced by Manley in house

Manley 4340 non-twist lightweight forged steel 4.750" crankshaft. Requires a 10.200" block

**Crank has been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Manley 4340 forged steel H-beam 6.700" connecting rod with optional 7/16" ARP 2000 cap screws (1500hp rating).

**Rods have been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Manley 2618 forged aluminum platinum series pistons 4.600" 1.120"CH -3cc Flat Top pistons #698180

Manley Premium chromoly wrist pins.

Total Seal 1/16"-1/16"-3/16" piston rings.

Clevite high performance "H" series rod (narrowed) and main bearings.

Internally Precision Balanced by Manley in house.

Compression Ratios:

112cc chamber = 11.0:1

118cc chamber = 10.5:1

124cc chamber = 10.1:1

Don't be fooled by other look alike kits with a cheap price. Our kits come standard with name brand components, ARP 2000 Rod bolts and Clevite H-series rod and main bearings.
