• Pushrods 5/16"-.120"wall 4130 one piece (8pcs)
1 1

Pushrods 5/16"-.120"wall 4130 one piece (8pcs)

Pushrods 5/16"-.120"wall 4130 one piece (8pcs)

$138.18
$138.18
Sale Sold out
View full details

Description

Reviews

Addition information

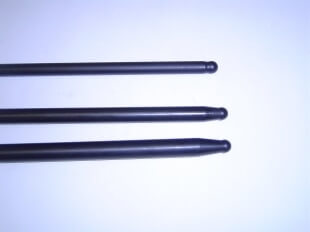

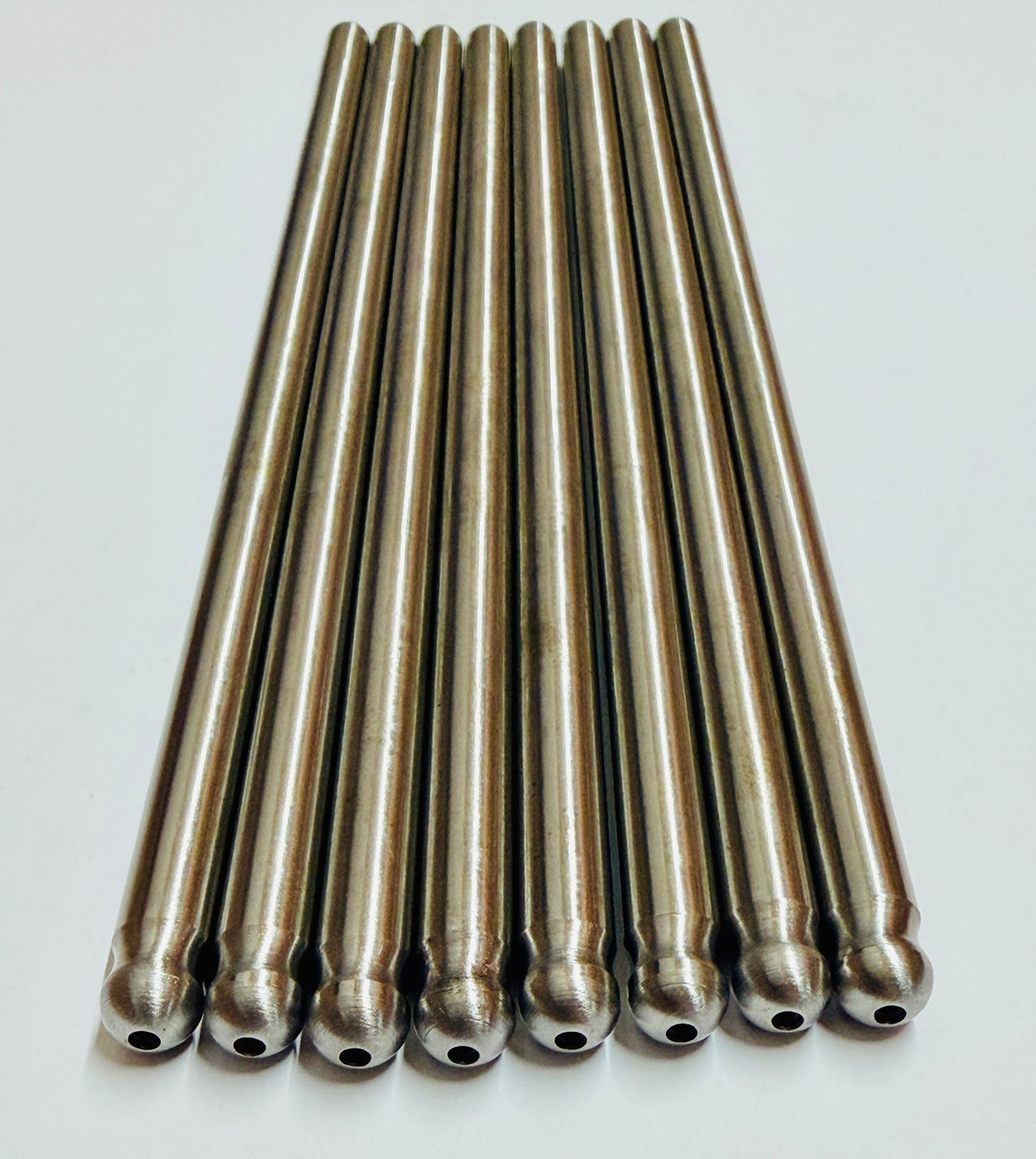

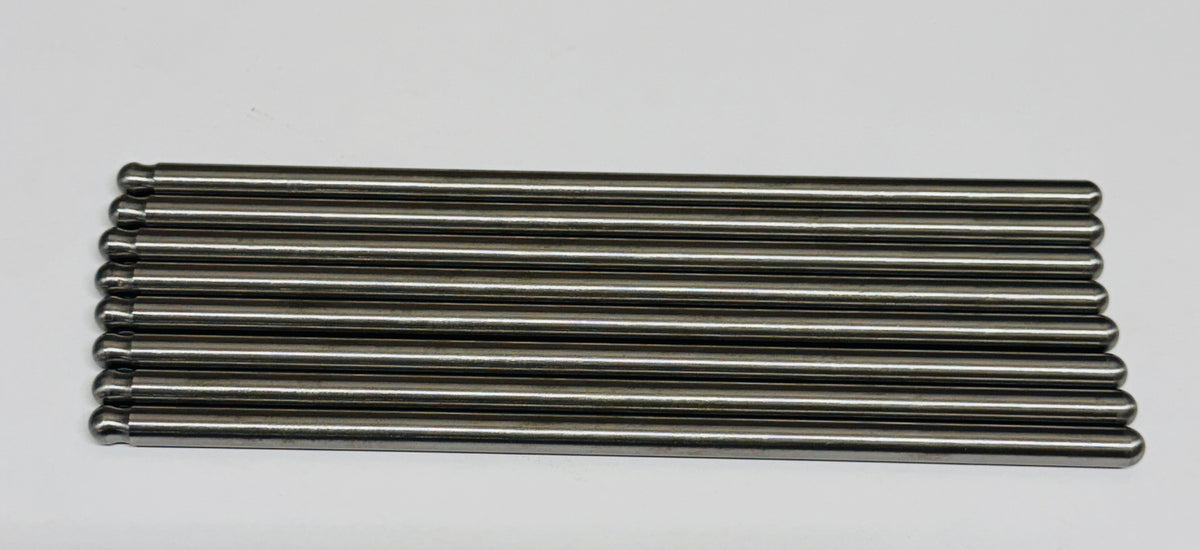

Pushrods 5/16"-.120"wall 4130 one piece (8pcs) Engineered, designed and manufactured in the United States with the racer in mind who's demands are nothing short of the best. Precision one piece pushrods, available in .120" wall 5/16", 3/8", 7/16" diameters and lengths in .050" increments from 6.800" to 10.200" in length.
  • Made of Mil-spec 4130 tubing and case hardened 0.010” deep (60-61 Rc).
  • Guide plate compatible.
  • Black oxide finish.
  • Unique forging process adds column thickness to the full length of the pushrod.
  • Centerless ground for optimum concentricity (straightness + 0.001” TIR).
  • Ball ends CNC-profiled for precise fit with rocker adjuster and lifter seat.
  • 210º radius on one end standard (no charge), as is .080” oil hole.

Available in:

  • 5/16 diameter with .120" wall thickness.
  • 3/8 diameter with .145” wall thickness.
  • 7/16 diameter with .180” wall thickness.
  • 1/2 diameter with .200” wall thickness.
  • Popular lengths in .050” increments (tolerance + 0.002”) or custom made.
Weight 3 lbs
Dimensions 10 × 3 × 3 in
upc 312XXX120-8
