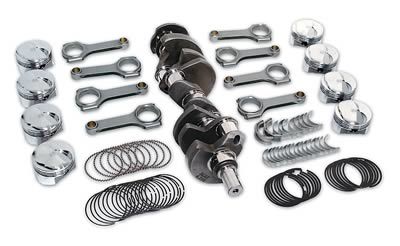

Scat Rotating Kit 347 High Compression Ford Small Block (8.200") 1-45415BE

Scat Small Block 347CID High Compression Rotating Assembly fits 8.200" 1-45415BE

Stroke 3.400" x Rod 5.400"ARP 2000 bolts x Piston 4.125"1.100C.H. -5cc dish 10.6:1 w/64cc

Kit is Precision Externally balanced by Scat in house

Scat 4340 non-twist lightweight forged steel 3.400" crankshaft. Requires a 8.200" block

**Crank has been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Scat 4340 forged steel H-beam 5.400" connecting rod with optional 7/16" ARP 2000 cap screws (1500hp rating).

**Rods have been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed. SRP 2618 forged aluminum platinum series pistons 4.125" 1.100CH -5cc flat pistons SRP Premium chromoly wrist pins.

Total Seal 1/16"-1/16"-3/16" piston rings.

Clevite high performance "H" series rod (narrowed) and main bearings.

Externally Precision Balanced by Scat in house.

Compression Ratios:

54cc chamber = 12.0:1

58cc chamber = 11.4:1

64cc chamber = 10.6:1

Don't be fooled by other look alike kits with a cheap price. Our kits come standard with name brand components, ARP 2000 Rod bolts and Clevite H-series rod and main bearings.
