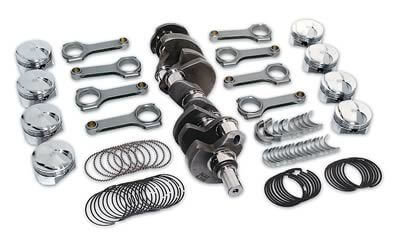

Molnar Rotating Kit 347 Low Compression Ford Small Block (8.200")

Molnar Ford Small Block  347CID 8.7:1 Compression Rotating Assembly, Balanced

Stroke 3.400" x Rod 5.400" ARP2000 bolts x Piston 4.030"1.100C.H. -20cc dish 8.7:1 w/64cc

Compression calculated: 8.200" deck, 4.030" bore, -20cc dome, .000" PTD, 4.100"x.039"(8.7cc)Gasket, 64cc chamber

Molnar 4340 non-twist lightweight forged steel 3.400" crankshaft. Requires a 8.200" block

Molnar 4340 forged steel H-beam 5.400" connecting rod with 7/16" ARP 2000 bolts (1500hp rating).

Racetec 2618 forged aluminum platinum series pistons 4.030" 1.100CH -20cc dish pistons Premium chromoly wrist pins.

Total Seal 1/16"-1/16"-3/16" piston rings.

Clevite high performance "H" series rod (narrowed) and main bearings.

Externally Precision Balanced by Molnar in house.

Compression Ratios:

64cc chamber = 8.7:1
