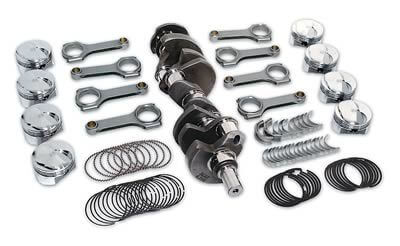

Scat Rotating Kit 454 Low Compression Ford Small Block (9.500") 1-46590BI

Scat Small Block 454CID Low Compression Rotating Assembly fits 9.500" 1-46590BI

Stroke 4.250" x Rod 6.250"ARP 2000 bolts x Piston 4.125"1.125C.H. -16cc dome 12.2:1 w/64cc

Kit is Precision internally balanced by Scat in house

Scat 4340 non-twist lightweight forged steel 4.250" crankshaft. Requires a 9.500" block

**Crank has been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Scat 4340 forged steel H-beam 6.250" connecting rod with optional 7/16" ARP 2000 cap screws (1500hp rating).

**Rods have been heat treated, stress relieved, shot peened, nitrided and 100% magna fluxed.

Mahle 2618 forged aluminum platinum series pistons 4.125" 1.125CH -16cc dish pistons Mahle Premium chromoly wrist pins.

Total Seal 1/16"-1/16"-3/16" piston rings.

Clevite high performance "H" series rod (narrowed) and main bearings.

Internally Precision Balanced by Scat in house.

Compression Ratios:

58cc chamber = 12.8:1 64cc

chamber = 12.2:1

70cc chamber = 11.5:1

Don't be fooled by other look alike kits with a cheap price. Our kits come standard with name brand components, ARP 2000 Rod bolts and Clevite H-series rod and main bearings.
