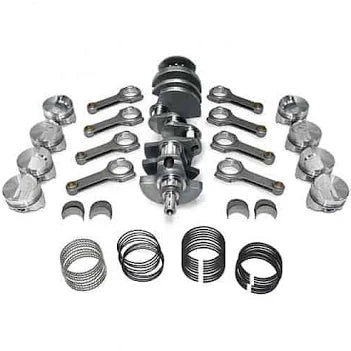

Molnar Rotating Kit 540 GenII HEMI 9.8:1 Compression, 540HLCRKBI (Balanced)

Molnar Rotating Kit 540 GenII HEMI 9.8:1 Compression, Internally Balanced 540HLCRKBI

Stroke 4.250" x Rod 7.100"w/ ARP2000 bolts x Piston 4.500"1.480C.H.,61cc dome 9.8:1 w/170cc chamber

Compression calculated: 10.720" deck, 4.500" bore, 61cc dome, .015" PTD, 4.590"x.051"(13.7cc)Gasket, 170cc chamber

• Crankshaft: Molnar 4.250" 4340 non-twist lightweight forged steel crankshaft. Requires a 10.725" block.

• Connecting Rods: Molnar 4340 forged steel H-beam 7.100" with optional 7/16" ARP2000 bolts (1500hp rating).

• Pistons: RaceTec 4.500" x 1.480" x 61cc Dome 2618 forged aluminum platinum series pistons.
• Wrist Pins: RaceTec Premium chromoly wrist pins.
• Rings: Total Seal 4.500 + .005" file-fit 1/16"-1/16"-3/16" piston rings.
• Bearings: Clevite high-performance "H" series rod (narrowed) and main bearings.
• Internally balanced by Molnar
